Quick Details

  • Type: Laboratory Furniture
  • General Use: Commercial Furniture
  • Material: Metal
  • Metal Type: Stainless Steel
  • Size: Customized
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Nanbei
  • Model Number: BSC1500II A2
  • Product name of safety cabinet: Lab class II biological safety cabinet biosafety cabinet
  • Structure of biological safety cabinet: 70% air recirculation, 30% air exhaust
  • Internal Size (W*D*H): 1350*600*660mm
  • External Size (W*D*H): 1500*750*2250mm
  • UV Lamp of biological safety cabinet: 40w*1 biological safety cabinet
  • type: Microflow/single /double person
  • Certification: CE/ISO
  • Material of biological safety cabinet: Work Zone: 304 stainless steel
  • Work Surface Height: 750mm of biological safety cabinet
  • Display: LCD Display

Packaging & Delivery

Packaging Details Wooden case.Lab class II biological safety cabinet biosafety cabinet.
Delivery Time Shipped in 15 days after payment
Product Description



BSC-1100IIA2-X Lab class II biological safety cabinet biosafety cabinet

Product Feature:
Advantage:

1. Motorized Front Window.

2. Time Reserve Function.

3. HEPA Filter life and UV Life indicator.

4. Automatic air speed adjustable with filter block.

5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.

6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).

7. Most accessories are standard. No need to pay more, save your money.

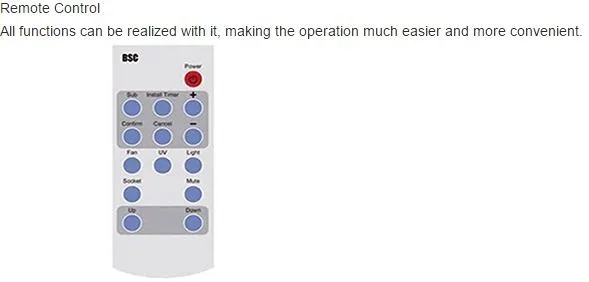

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.

9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

 Technical parameters of Class II A2 Biological safety cabinet:



Model

BSC-1100IIA2-X

BSC-

1300IIA2-X

BSC-

1500IIA2-X

BSC-

1800IIA2-X

BSC-

2000IIA2-X

Internal Size

(W*D*H)

940* 600

*660 mm

1150*600

*660 mm

1350*600

*660mm

1710*600

*660 mm

1800*600

*660mm

External Size

(W*D*H)

1100*750

*2250mm

1300*750

*2250mm

1500*750

*2250mm

1870*750

*2290mm

1950*800

*2305mm

Tested Opening

Safety Height 200 mm(8’’)

Max Opening

420mm(17’’)

420mm(17’’)

400mm(16’’)

400mm(16’’)

400mm(16’’)

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*2

40W* 1

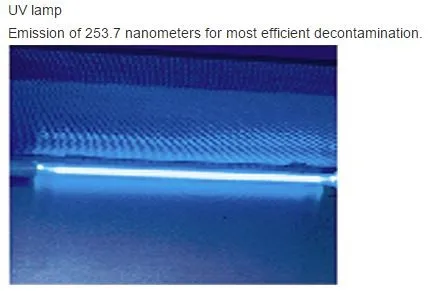

UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Fluorescent Lamp

21W*2

21W*2

28W*2

40W*2

40W*2

Illumination

≥1000Lux

Consumption

760W

800W

900W

900W

1500W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and downflow filter pressure,

filter and UV lamp working time, inflow and downflow velocity, filter life,

humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

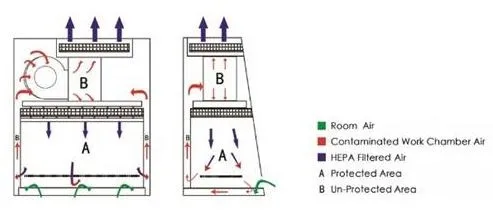

70% air recirculation, 30% air exhaust

Visual and audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

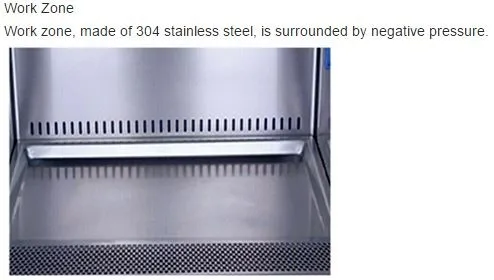

Work Zone: 304 stainless steel



Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

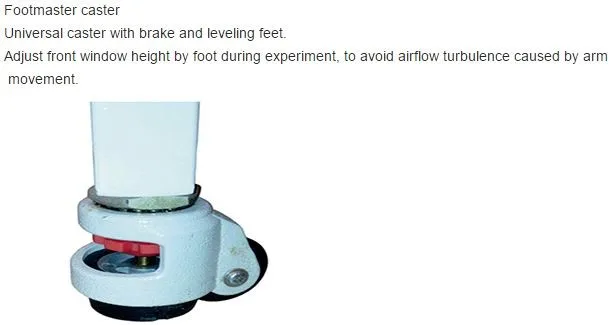

Caster

Footmaster caster

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

Fluorescent lamp,UV lamp*2 ,Base stand, Remote control, Foot switch,

Drain valve, Waterproof sockets*2

Optional Accessory

Water and gas tap

Gross Weight

243kg

280kg

316kg

395kg

420kg

Package Size

(W*D*H)

1220*1000

*1840 mm

1460*1050

*1800 mm

1630*1000

*1820 mm

2000*950

*1820 mm

2090*1050

*1860 mm



 Technical parameters of Class II B2 Biological Safety Cabinet:



Model

BSC-

1100IIB2-X

BSC-

1300IIB2-X

BSC-

1500IIB2-X

BSC-

1800IIB2-X

Internal Size (W*D*H)

940*600

*660mm

1150*600

*660mm

1350*600

*660mm

1670*600

*660mm

External Size (W*D*H)

1100*750

*2250mm

1300*750

*2250mm

1500*760

*2250mm

1820*750

*2250mm

Tested Opening

 Safety Height ≤200 mm (8")

Max Opening

420 mm (17")

420 mm (17")

500mm (20")

500mm (20")

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

Pre-Filter

Washable

HEPA Filter

Two,  99.999% efficient at 0.3 um.  Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

Noise

NSF49≤61dB / EN12469≤58 dB

UV Lamp

30W× 1

18W× 1

40W× 1

40W× 2



UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Fluorescent Lamp

21W× 2

21W× 2

28W× 2

40W× 2

Illumination

≥1000Lux

Consumption

700W

850W

900W

1200W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and downflow filter pressure,

filter and UV lamp working time,

inflow and downflow velocity,

filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

0% air re-circulation, 100% air exhaust

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity.

Exhaust Duct

4 meters PVC duct, Diameter:300mm

Material

Work Zone: 304 stainless steel



Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

Caster

Footmaster caster

Power Supply

110/220V±10%, 60/50Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)

Standard Accessory

Fluorescent lamp, UV lamp*2 ,base stand, remote control,

foot switch, exhaust blower,

exhaust duct, drain valve,

waterproof sockets*2, pipe strap*2.

Optional Accessory

Water and gas tap

Gross Weight

246kg

276kg

302kg

408kg

Package

Main Body (W*D*H)

1220*1000

*1840mm

1460*1050

*1800mm

1650*990

*1800mm

1950*990

*1950mm



Exhaust Blower (W*D*H)

970*810

*630mm

970*810

*630mm

970*810

*630mm

970*810

*630mm



Application:



BSC-1500II A2-X Biological safety cabinet B2 Biological safety cabinet  BSC-1100II A2-X biological safety cabinet





Packaging & Shipping



Package :Wooden Case. Class II Biological safety cabinet biosafety cabinet

Shipping: By Express.



Warranty

   Warranty :12months.  Class II Biological safety cabinet biosafety cabinet
